ParametersIndicatorsRatedworking voltage380VAC 50HZRated current shell frame class100AShort circuitsegmentation capabilityIcs=Icu=6000AProductprotection classIP20Operating ambient temperature-40-70°CLeakage protection setting10-100mA configurableCurrent overload protection10-100AOvervoltage protection250-320V settableUndervoltage protection100-200V settableOver tempera...

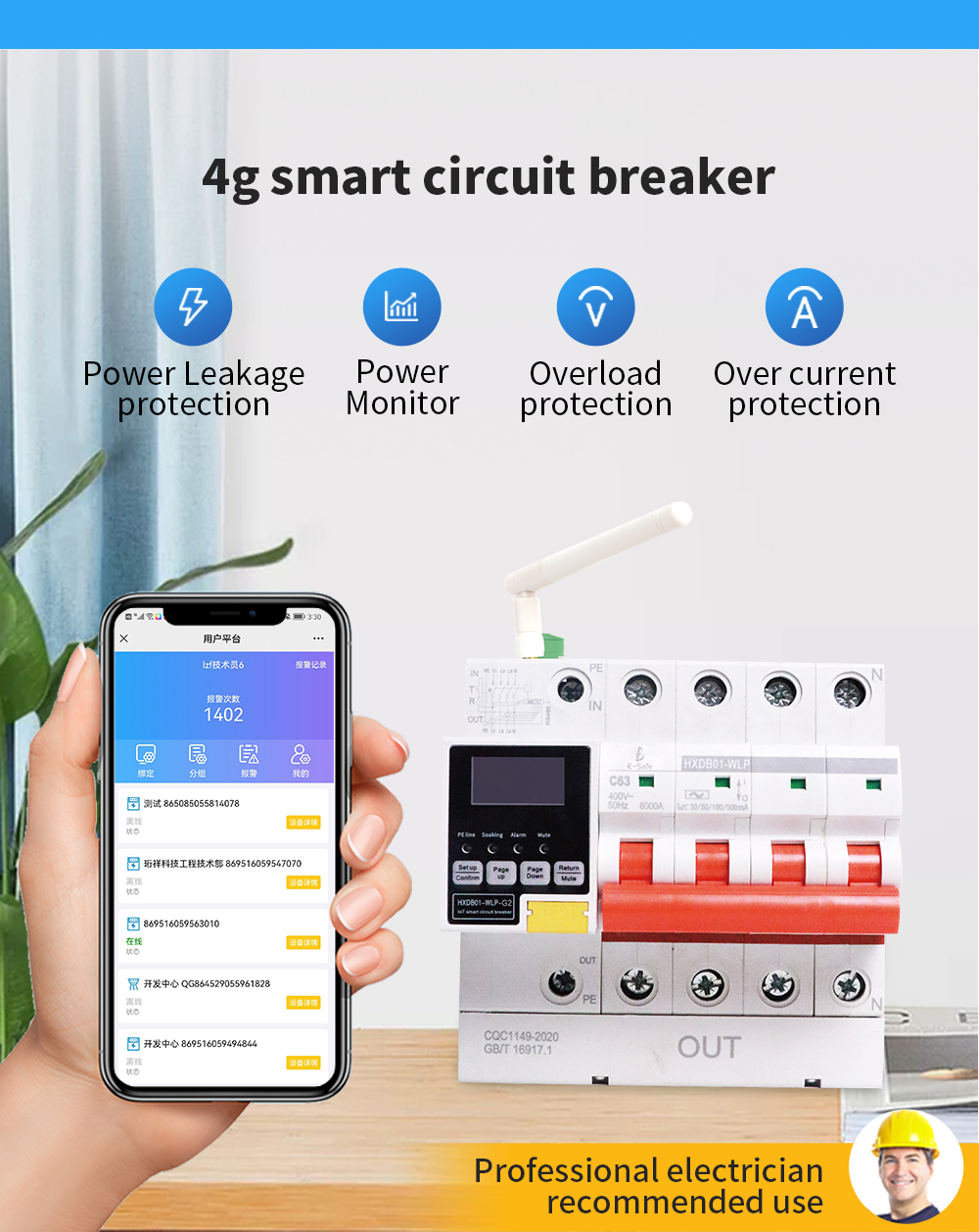

With information SMS, phone, WeChat push and platform side push functions.

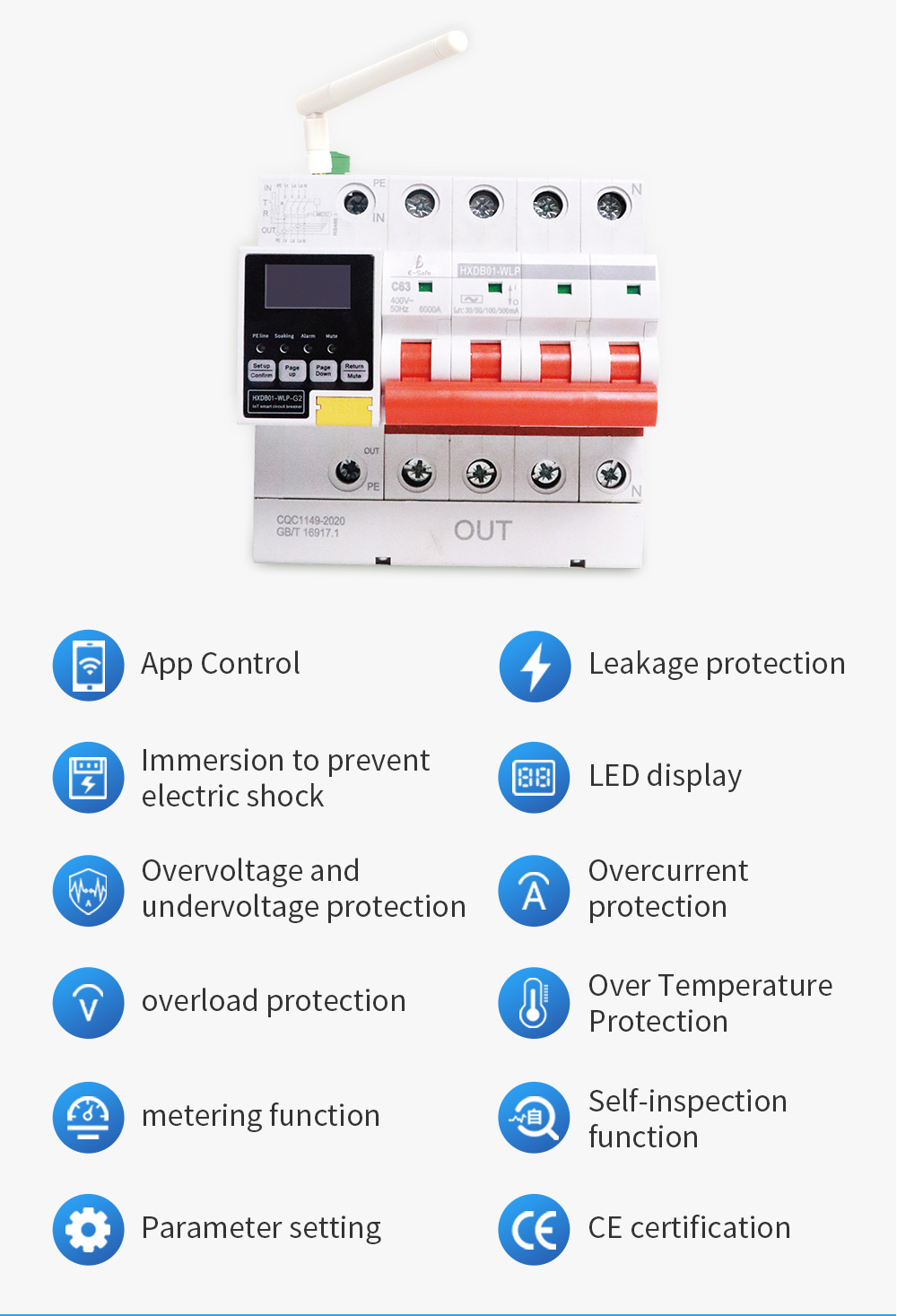

Earth leakage protection
Over temperature protection

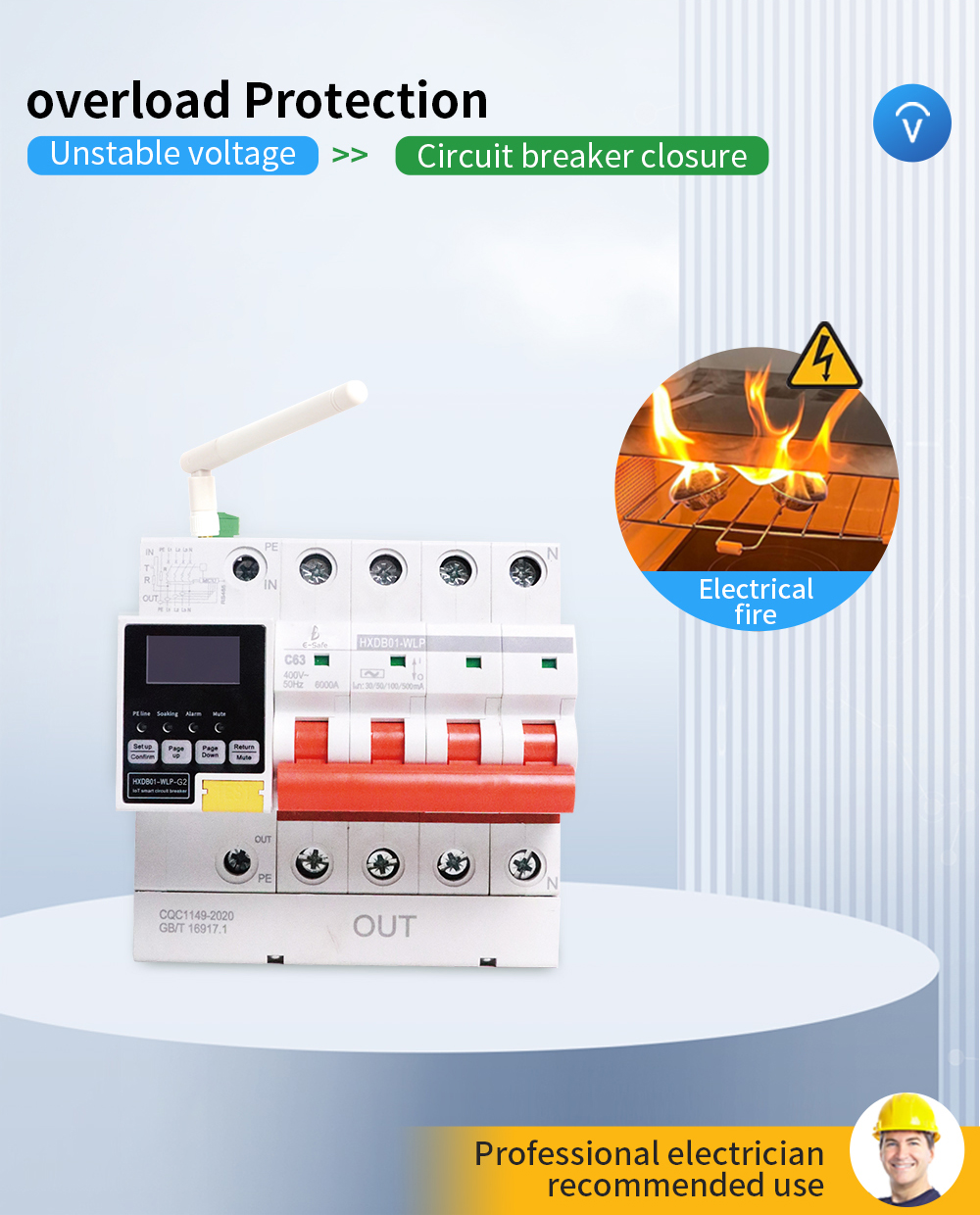

Overload protection
Short circuit protection
Electricity metering
Over/under voltage protection
Anti-surge
Water immersion protection
Power outage notification
Power factor analysis
Three-phase balance analysis
Remote brake opening
Parameters | Indicators |
Rated working voltage | 380VAC 50HZ |
Rated current shell frame class | 100A |
Short circuit segmentation capability | Ics=Icu=6000A |
Product protection class | IP20 |
Operating ambient temperature | -40-70°C |
Leakage protection setting | 10-100mA configurable |
Current overload protection | 10-100A |
Overvoltage protection | 250-320V settable |
Undervoltage protection | 100-200V settable |
Over temperature protection | 0-120°C settable |
Earth leakage protection action | 0.04s |
Short circuit protection action | 0.03s |
Water immersion protection | Trip protection setting after 10-990S of water immersion |
Communication methods | RS485, 4G |
